OPK Submarine, S Outside Wood, Slide System

85.00115.00 ex VAT

Door width     –           Up to 1200mm

Door Height   –           Up to 2400mm

Timber Thickness    –    16mm Minimum

Door Weight       –         15 – 30Kg

Height Adjustment  –   +3mm

Soft close            –         Yes

Single Top and Bottom  Track   –   Per Door Width x 2

Clear

OPK Submarine S ( Outside Install )

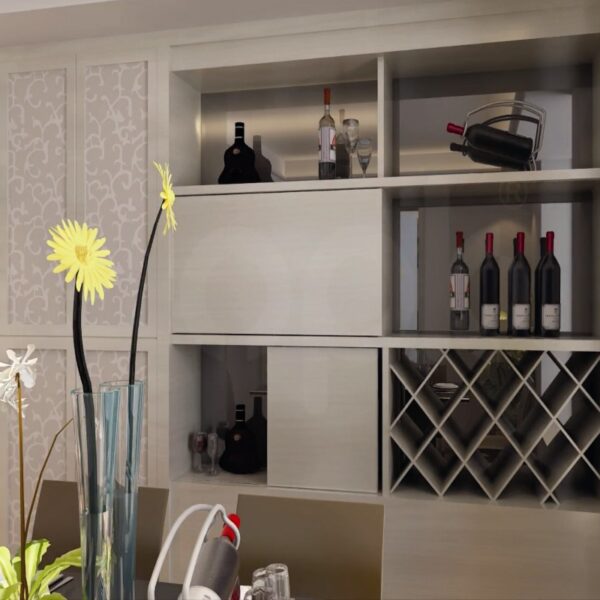

OPK Submarine S is a sliding door system for shelving systems.

Due to its flexible application possibilities, it is also ideal for traditional crafts.

OPK Submarine S is a system running in front of the shelf and can also be retrofitted.

The both sides damping with tumbler is integrated in the running track and thus invisible.

OPK Submarine S is a pre-front solution and therefore a perfect solution for shelving systems.

Narrow running tracks with a modern design, as well as a simple and quick installation

are other benefits of OPK Submarine S.

 Whats Included

1.  Top and Bottom Single Track  -  Dimension = Door Width Selected x 2

2.  Top and bottom Bearing Wheels - Four per Door

3.  Soft close -   Two per Door

4. Fixing Track Clips -  3 Per Meter of Track

Additional information

Door Width

600mm, 1200mm

Icons

( Hover for Description)

   Door Weight



Advantages at a Glance

Video

  • One for all
  • Different construction variants possible
  • Submarine 9, wooden doors thickness 16-25 mm
  • Easy, fast, tool-free installation, comfortable height adjustment of the fronts
  • Both sides, invisible damping 15 / 30 kg for minimum installation width and fixable end position
  • Closure / fixation of the end position possible without damping

Uses

 Cabinet Doors –  Bedroom, Living Room, Office



Certificates

• Tested according to SGS-CSTC    EN 15706:2009  Level 3
