Promani One, Pocket Frame, Single Extra High

335.00405.00 ex VAT

Door width     –           600mm – 1235mm

Door Height   –           Up to 2700mm

Wall thickness –          100mm  ( for 125mm Double slab Frame Box only )

Timber Thickness    –    40mm Minimum

Door Weight       –         80Kg

Height Adjustment  –   6-8mm

Soft close            –         Yes Double Action

Single Top   Track   –      Door Width x 2

Clear

Promani One , Extra High Pocket systems is an added extension accessory that allows the system acheive a height up to 2700m in height.  The system can be adapted directly to the final size of the Sliding door.

High-quality carriages with ball-bearing plastic rollers move in elegant aluminium profiles EV1, which guarantee a light, wear-resistant and quiet running. Moving parts are protected from dirt by a self-cleaning construction. The assembly is simple, fast and efficient.

The Track has been especially designed to be easily removed even when the sliding door system is fully installed . In this way , it is possible to add accessories even if the product is already in place , without damaging the wall finishing.

 Whats Included

Please note ! This is system only, For surrounding Jams order Separately.

1.  Top Single Track  -  Dimension = Door Width Selected x 2

2.  Top Bearing Wheels - Two per Door

3.  Double Action Soft close -   One per Door

4. Complete steel Frame work x 1

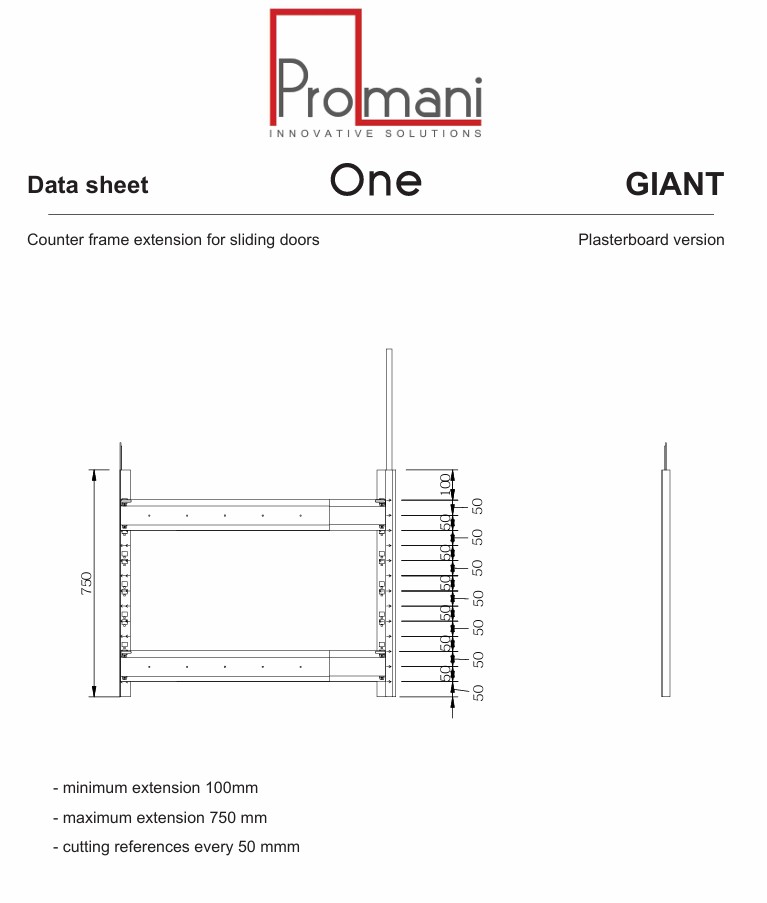

5. Extension Frame to Increase Height

Additional information

Door Width

610-838mm, 610mm-860mm, 914mm, 1110mm-1235mm

Icons

( Hover for Description)

 Door Weight



Advantages at a Glance

Video

One Pocket Many dimensions,

Flexible in Height and Width.

Double Soft closing Action

A Complete product offering best user experience

Extractable Track

Easy to clean or add any future accesories

Dry Wall U Profile Construction

Improves and accelerates the installation

Complete steel cage with click assembly

Easier assebly and more stable construction

Uses

Cabinet and Wardrobe  Doors –  Bedroom, Living Room, Office



Certificates

• Tested according to SGS-CSTC    EN 15706:2009  Level 3

Downloads

  OPk Promani Install

  OPk Promani Single Pocket System

  OPk Promani Track Install video

  OPk Promani Leaflet
